Pads for Wilwood Dynapro 7812 / 7816.
Fits: Billet Dynalite, Dynapro lug mount, Narrow Dynapro, Forged Dynapro, UTV4, UTV6.
What we’d fit.
BP-20 is Wilwood's street-and-track baseline. BP-35 is a genuine road-course compound. Wilwood publish these as friction graphs rather than as specifications, so treat the figures as indicative.
Wilwood BP-20
The street-and-track baseline of the Wilwood range.
View this padMove to Wilwood BP-35 when you're road racing rather than doing occasional track days.
This is TrackTheory’s recommendation for the Wilwood Dynapro 7812 / 7816, not manufacturer advice — a starting point based on the published figures below and what we stock, not a survey of what other competitors run. Car weight, driving style and how long your sessions are all move the answer, so tell us yours and we’ll give you a straighter one.
Same shape. Very different pads.
Every compound below bolts into the same Wilwood Dynapro 7812 / 7816 caliper. What separates them is operating temperature and friction — a sprint pad that needs heat in it will feel wooden on a cold first lap, and a road-biased pad will fade before the end of a long race. Figures are the manufacturers’ own published data.
WinmaX W6.5
2 options · from $494 · 1 in stockThe standout for sprints and hillclimbs: close to 0.5 friction from a 50°C floor, so it bites on lap one. WinmaX call it their best rally pad.
50–800°Cµ 0.47–0.50Usable from coldrally · sprint · hillclimb · circuitWinmaX W3
1 option · from $362 · 1 in stockWinmaX call this their most versatile pad: sportive street through to sprint racing. It is the W-series compound we stock most of.
0–650°Cµ 0.34–0.37Strong from coldstreet · trackday · sprint · hillclimbWilwood BP-40

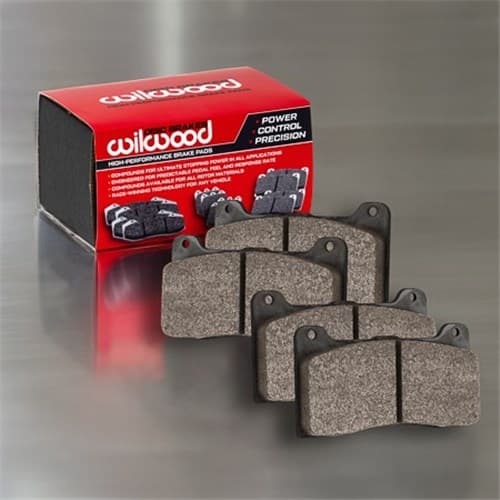

2 options · from $283 · 2 in stockOval, dirt and off-road use, including titanium rotors.
88–649°Cµ 0.43–0.53Usable from coldcircuit · road-course · asphalt-oval · dirtWilwood BP-35
1 option · from $365 · 1 in stockRoad course, oval and drag racing.
88–649°Cµ 0.46–0.56Usable from coldcircuit · road-course · pavement-oval · dragWilwood BP-20
2 options · from $239 · 2 in stockThe street-and-track baseline of the Wilwood range.

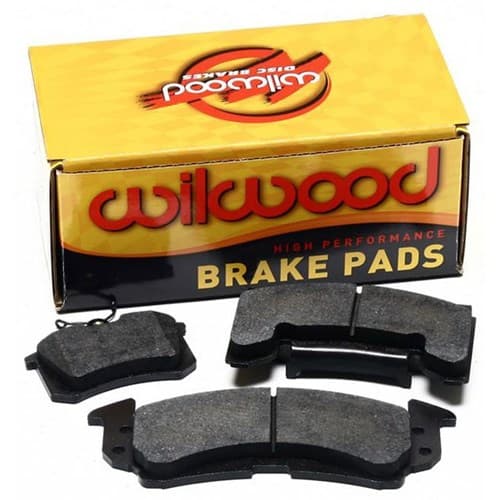

88–538°Cµ 0.32–0.48Usable from coldstreet · autocross · track-day · dragWilwood BP-10
3 options · from $110 · 3 in stockWilwood’s baseline Smart Pad, supplied with most of their kits. A street compound — its friction falls as it heats.
88–538°Cµ 0.30–0.43Usable from coldstreet · muscle-car · drag · dirt-lightWinmaX W7
1 option · from $508The top of the W-series — professional circuit and rally use, and the highest friction WinmaX publish.
100–850°Cµ 0.48–0.53Usable from coldcircuit · rally · enduranceProject Mu PCR09
2 options · from $229Project Mu’s Club Racer. A strong trackday pad, but with a 300°C floor it is the range’s worst choice for a cold first lap.
300–800°Cµ 0.42–0.55Needs heattrackday · circuitProject Mu H20
2 options · from $525A sprint and flying-lap compound used in GT and NASCAR classes.
200–800°Cµ 0.42–0.44Needs some heatsprint · circuitCirco M119
2 options · from $508Circo’s sprint answer: around 0.5 friction from 50°C, so it works before the pads are hot. Rally and circuit.
50–800°Cµ 0.48–0.51Usable from coldrally · circuit · sprintWinmaX W5
2 options · from $405WinmaX’s standard circuit model, and the default club racing and rally choice in the range.
100–750°Cµ 0.40–0.43Usable from coldcircuit · trackday · sprint · rallyProject Mu H16-03
2 options · from $470Project Mu’s GT and TCR-level race compound.
200–650°Cµ 0.45–0.60Needs some heattrackday · circuitWilwood BP-45
1 option · from $349The best cold bite in Wilwood’s race group — the pick for sprints where lap one counts.
88–649°Cµ 0.46–0.55Usable from coldcircuit · road-course · oval · all-raceWilwood BP-30
1 option · from $331Road course and oval racing — the strongest Wilwood race pad once genuinely hot, and the weakest from cold.
88–649°Cµ 0.38–0.55Usable from coldcircuit · road-course · pavement-oval · dirtWilwood BP-Q
1 option · from $288A street compound chosen for low dust and low noise.
88–538°Cµ 0.33–0.50Usable from coldstreet · show-car · street-rod · truck-suvWinmaX W1
1 option · from $296WinmaX’s street compound — quiet and low dust, and explicitly not intended for track use.
0–500°Cµ 0.29–0.32Strong from coldstreetProject Mu H21
2 options · from $525Circuit and endurance racing. Project Mu rate it as kind to the rotor with long pad life.
200–850°CNeeds some heatcircuit · enduranceProject Mu H22
2 options · from $525The rear-axle partner to H20, H21 and H16-03, chosen for low wear.

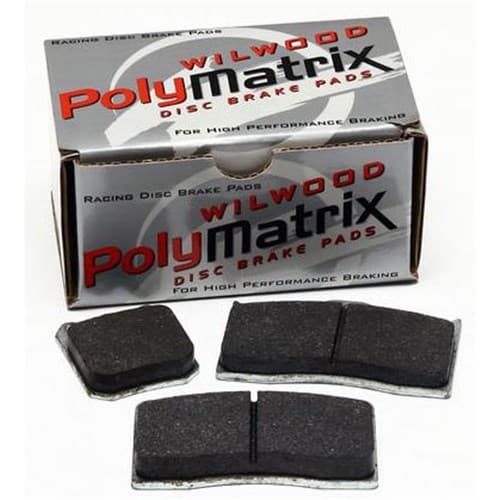

circuitWilwood PolyMatrix E
1 option · from $161A PolyMatrix race compound. Wilwood publish no friction or temperature figures for it.
dirt · drag · autocross · road-course-light
Figures are the manufacturers’ own published data for each compound. Where a brand doesn’t publish a figure we say so rather than estimate it. From cold is our reading of each manufacturer’s published minimum operating temperature, not a separate rating they publish. Wilwood publish friction as graphs rather than as specifications, so those figures are read off the curve and are indicative rather than exact. Manufacturers test on their own equipment, so friction numbers are best compared within a brand rather than across brands. Not sure which suits your Wilwood Dynapro 7812 / 7816 setup? Ask BuildBot or email us with your car, class and typical session length.
Where this caliper turns up.
WinmaX compounds (7).
Wilwood compounds (12).
Project Mu compounds (10).
CIRCO Brakes compounds (2).
One shape, every part number.
These part numbers all share the Wilwood Dynapro 7812 / 7816 backing plate. The suffix is the compound (and plate thickness where the shape comes in more than one) — ask us or BuildBot which compound suits your discipline.
| Wilwood | WB150-{20|30|35|40|45|Q|22}-7812K · WB150-{20|40}-7816K · WB150-9136K (BP-10 Dynapro plate) |
| WinmaX | WMP1363-12.5-{W1|W3|W5|W6.5} · WMP1363-15.5-{W5|W6.5|W7} |
| Circo | MB2746-{12.5|15.5}-* (Wilwood 7812 & 7816 plates) |
| Project Mu | F1103-12-{H16-03|H20|H21|H22} · F1103-15-{H16-03|H20|H21|H22} · PCR09-F1103 (Club Racer) |
12mm plate = 7812, 15mm = 7816. Four pad brands available for this caliper family — compare compounds above.
