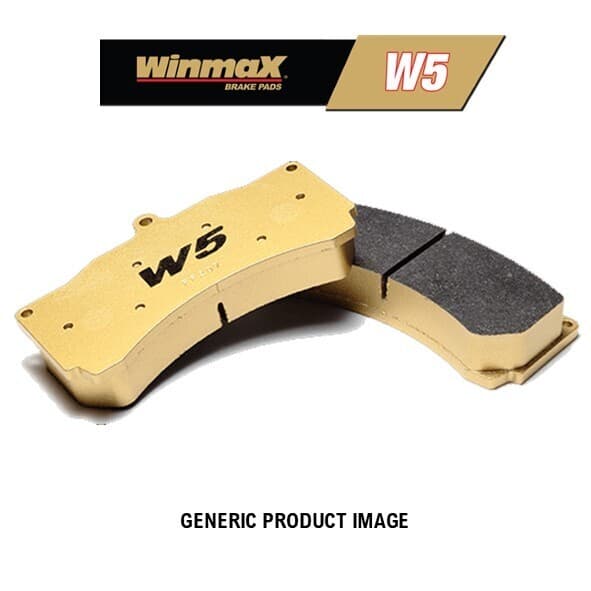

The compound
WinmaX W5.
WinmaX call W5 their standard circuit model, and it is the compound most Australian club racing runs on. It asks for around 100°C before it is at its best, so it is a full-session race pad rather than a road one, and holds friction to 750°C. If you are choosing one compound for a club race weekend and nothing else is known, this is the sensible starting point.
Operating range100–750°C
Friction µ0.40–0.43
Cross-brand equivalents
Run something similar.
These are the compounds we stock for the AP CP5200 family / Brembo 4-pot B52 (D50) whose published friction and operating temperature come closest to WinmaX W5. They are a starting point for switching brands — not a guarantee of identical feel, because each manufacturer measures friction on their own equipment.
Circo S99
Very close100–700°Cµ 0.40–0.43
Entry-level racing and 2WD rally, working from cold up to 700°C.
Matched on published friction and operating temperature.
From $409Circo M192
Close100–750°Cµ 0.37–0.41
An endurance rear pad developed for GT3 and GT4 machinery.
Matched on published friction and operating temperature.
Fits the same caliper
More pads for the AP CP5200 family / Brembo 4-pot B52 (D50).
Pairs well with
