Pads for Wilwood Superlite 7416 / 7420.
Fits: Billet Superlite 4/6 piston, Forged Superlite 4/6 piston, Narrow Superlite (7416), SLC56, SL6.
What we’d fit.
BP-45 is the pick of the Wilwood race group for anything that starts cold — Wilwood describe it as their strongest low-temperature friction. BP-30 goes harder once genuinely hot but is the weakest of the group from cold.
Wilwood BP-20
The street-and-track baseline of the Wilwood range.
View this padWilwood BP-45
The best cold bite in Wilwood’s race group — the pick for sprints where lap one counts.
View this padMove to Wilwood BP-45 when you're racing and want the best cold response Wilwood offer.
This is TrackTheory’s recommendation for the Wilwood Superlite 7416 / 7420, not manufacturer advice — a starting point based on the published figures below and what we stock, not a survey of what other competitors run. Car weight, driving style and how long your sessions are all move the answer, so tell us yours and we’ll give you a straighter one.
Same shape. Very different pads.
Every compound below bolts into the same Wilwood Superlite 7416 / 7420 caliper. What separates them is operating temperature and friction — a sprint pad that needs heat in it will feel wooden on a cold first lap, and a road-biased pad will fade before the end of a long race. Figures are the manufacturers’ own published data.
Project Mu PCR09
3 options · from $387 · 1 in stockProject Mu’s Club Racer. A strong trackday pad, but with a 300°C floor it is the range’s worst choice for a cold first lap.
300–800°Cµ 0.42–0.55Needs heattrackday · circuitProject Mu H16-03
5 options · from $470 · 2 in stockProject Mu’s GT and TCR-level race compound.
200–650°Cµ 0.45–0.60Needs some heattrackday · circuitWinmaX W3
2 options · from $362 · 1 in stockWinmaX call this their most versatile pad: sportive street through to sprint racing. It is the W-series compound we stock most of.
0–650°Cµ 0.34–0.37Strong from coldstreet · trackday · sprint · hillclimbWilwood BP-40
2 options · from $321 · 2 in stockOval, dirt and off-road use, including titanium rotors.
88–649°Cµ 0.43–0.53Usable from coldcircuit · road-course · asphalt-oval · dirtWilwood BP-35
2 options · from $402 · 2 in stockRoad course, oval and drag racing.
88–649°Cµ 0.46–0.56Usable from coldcircuit · road-course · pavement-oval · dragWilwood BP-30
2 options · from $355 · 1 in stockRoad course and oval racing — the strongest Wilwood race pad once genuinely hot, and the weakest from cold.
88–649°Cµ 0.38–0.55Usable from coldcircuit · road-course · pavement-oval · dirtWilwood BP-45
2 options · from $376 · 2 in stockThe best cold bite in Wilwood’s race group — the pick for sprints where lap one counts.
88–649°Cµ 0.46–0.55Usable from coldcircuit · road-course · oval · all-raceWilwood BP-10
5 options · from $172 · 5 in stockWilwood’s baseline Smart Pad, supplied with most of their kits. A street compound — its friction falls as it heats.
88–538°Cµ 0.30–0.43Usable from coldstreet · muscle-car · drag · dirt-lightWilwood BP-20
2 options · from $273 · 2 in stockThe street-and-track baseline of the Wilwood range.
88–538°Cµ 0.32–0.48Usable from coldstreet · autocross · track-day · dragProject Mu H21
5 options · from $572 · 1 in stockCircuit and endurance racing. Project Mu rate it as kind to the rotor with long pad life.
200–850°CNeeds some heatcircuit · enduranceCirco M207
3 options · from $646The highest peak friction and highest peak temperature Circo publish — professional circuit racing, and it needs 250°C to come in.
250–920°Cµ 0.45–0.56Needs heatcircuit · enduranceCirco M127
1 option · from $508Sprint and time-attack. More outright bite than M119, but it wants heat in it first.
150–850°Cµ 0.45–0.55Needs some heatsprint · circuitWinmaX W7
1 option · from $508The top of the W-series — professional circuit and rally use, and the highest friction WinmaX publish.
100–850°Cµ 0.48–0.53Usable from coldcircuit · rally · enduranceWinmaX W6.5
3 options · from $494The standout for sprints and hillclimbs: close to 0.5 friction from a 50°C floor, so it bites on lap one. WinmaX call it their best rally pad.
50–800°Cµ 0.47–0.50Usable from coldrally · sprint · hillclimb · circuitCirco M119
5 options · from $508Circo’s sprint answer: around 0.5 friction from 50°C, so it works before the pads are hot. Rally and circuit.
50–800°Cµ 0.48–0.51Usable from coldrally · circuit · sprintProject Mu H20
5 options · from $525A sprint and flying-lap compound used in GT and NASCAR classes.
200–800°Cµ 0.42–0.44Needs some heatsprint · circuitCirco M111
1 option · from $469A circuit compound aimed at ABS cars, with a very wide friction range.
180–780°Cµ 0.31–0.49Needs some heatcircuitWinmaX W5
1 option · from $405WinmaX’s standard circuit model, and the default club racing and rally choice in the range.
100–750°Cµ 0.40–0.43Usable from coldcircuit · trackday · sprint · rallyCirco S83
1 option · from $381Entry-level track work and rear-axle duty, usable from cold.
0–600°Cµ 0.32–0.36Strong from coldstreet · trackday · circuitWinmaX W1
2 options · from $296WinmaX’s street compound — quiet and low dust, and explicitly not intended for track use.
0–500°Cµ 0.29–0.32Strong from coldstreetProject Mu H22
5 options · from $525The rear-axle partner to H20, H21 and H16-03, chosen for low wear.
circuit
Figures are the manufacturers’ own published data for each compound. Where a brand doesn’t publish a figure we say so rather than estimate it. From cold is our reading of each manufacturer’s published minimum operating temperature, not a separate rating they publish. Wilwood publish friction as graphs rather than as specifications, so those figures are read off the curve and are indicative rather than exact. Manufacturers test on their own equipment, so friction numbers are best compared within a brand rather than across brands. Not sure which suits your Wilwood Superlite 7416 / 7420 setup? Ask BuildBot or email us with your car, class and typical session length.
Where this caliper turns up.
Project Mu compounds (23).
WinmaX compounds (9).
CIRCO Brakes compounds (11).
Wilwood compounds (15).
One shape, every part number.
These part numbers all share the Wilwood Superlite 7416 / 7420 backing plate. The suffix is the compound (and plate thickness where the shape comes in more than one) — ask us or BuildBot which compound suits your discipline.

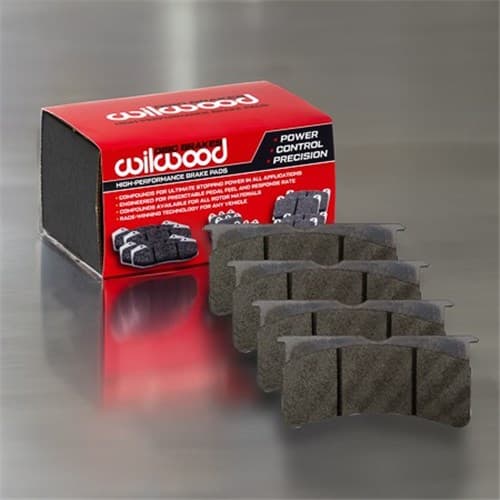

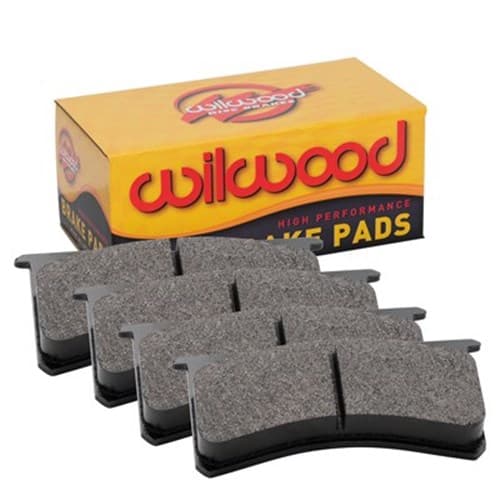

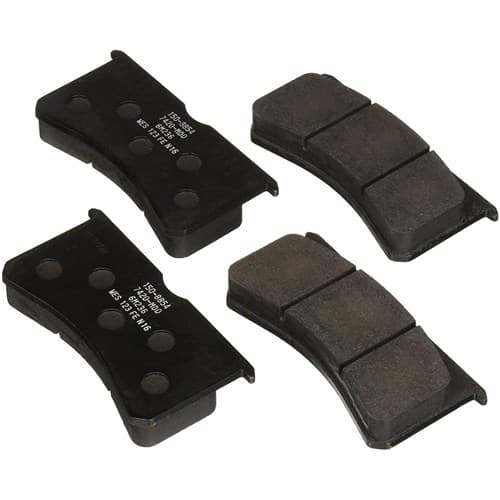

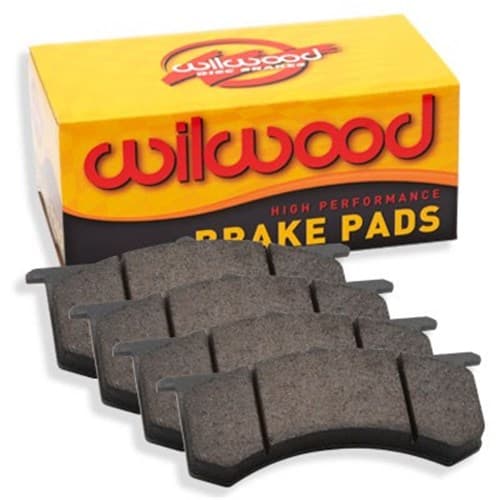

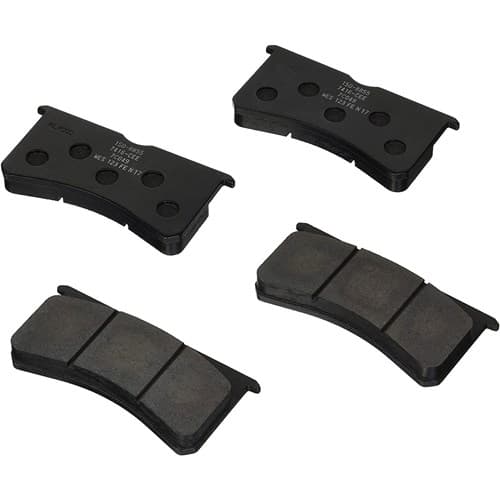

| Wilwood | WB150-{20|30|35|40|45|22}-7416K · WB150-{20|30|35|40|45|22}-7420K · WB150-14772K (BP-30 SL6 .65") · WB150-8854K (BP-10 7420 plate) · WB150-8855K (BP-10 7416 narrow plate) |
| WinmaX | WMP1335-16-W6.5 · WMP1335-20-{W3|W6.5|W7} · WMP830-16-{W1|W6.5} · WMP830-20-{W1|W3|W5} |
| Circo | MB2690-{16.5|18|20}-* (7416 & 7420) · MB1680-{16|16.5|20}-* (7416 plate) |
| Project Mu | F1102-16-* (7416) · F1102-20-* (7420) · F1102-{14|17|25}-* (other plate thicknesses) |
Two plate thickness families cover the Superlite range: 16-17mm and 20mm. Check your existing pad thickness before ordering.
